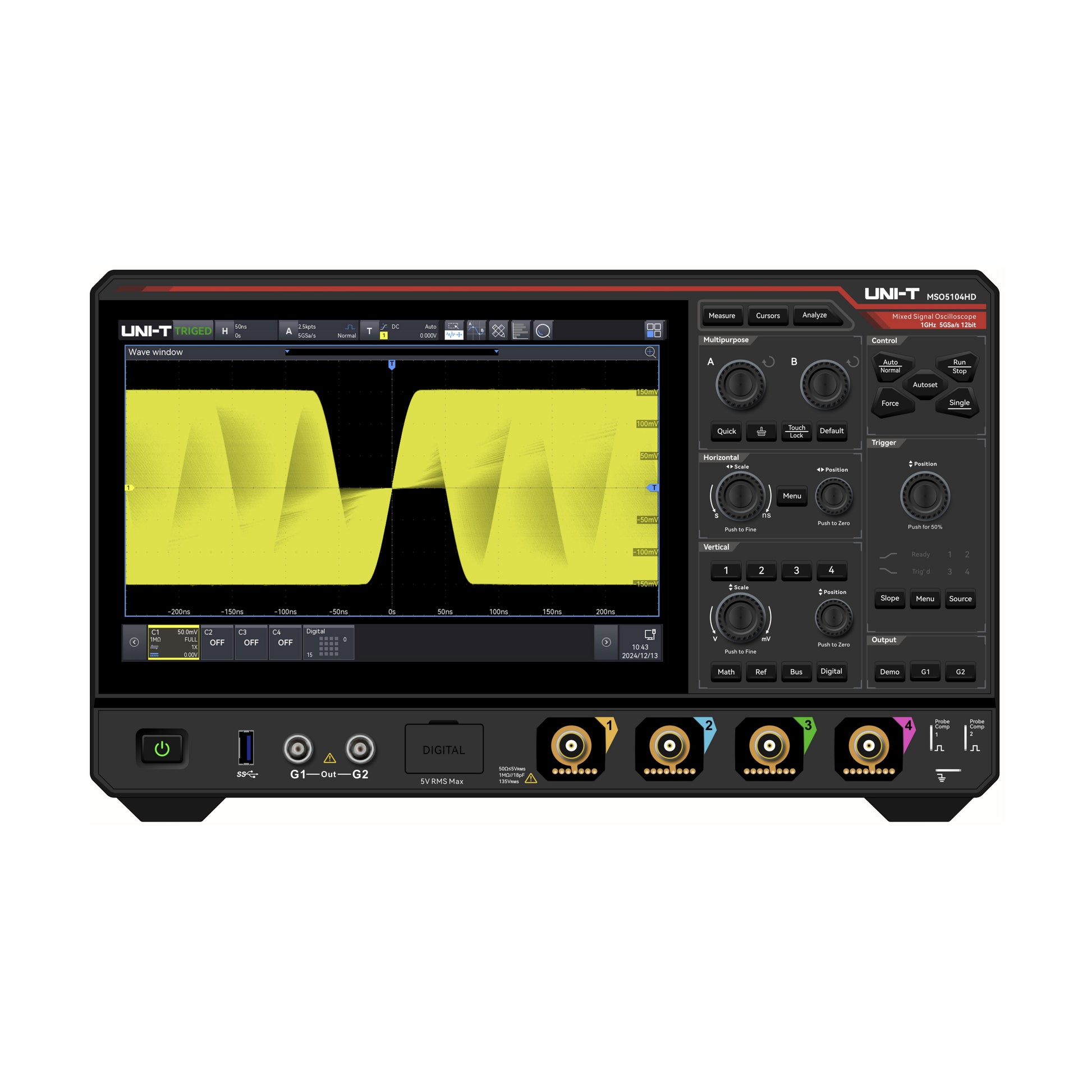

UNI-T MSO5104HD 1 GHz MSO High Resolution Oscilloscope 5 GSa/s

High Resolution Oscilloscope, 1 GHz MSO, 12bit, 4 Analog + 16 Digital Channels, Max. 5 GSa/s, Memory depth: 500 Mpts, 800,000 wfm/s, 10.1" Touch screen.

The MSO5000HD is a high-resolution oscilloscope that integrates 4 signal channels, a 16-channel logic analyzer, and a 2-channel arbitrary waveform generator. Equipped with R12™ 12-bit resolution ADC, it can enhance resolution to 16-bit through ERES (enhanced resolution).

It features a maximum sampling rate of 5 GSa/s, a memory depth of 500 Mpts, and a waveform capture rate of 1,500,000 wfms/s, ensuring high-quality waveform analysis. The MSO5000HD supports 15 types of trigger events and 15 types of protocol data, and it can be remotely controlled via a WebServer.

It is suitable for various testing and analysis tasks in fields such as medical, low-power devices, integrated circuits, high-precision power supplies, electricity, and automotive electronics. The MSO5000HD is a versatile and powerful instrument.
