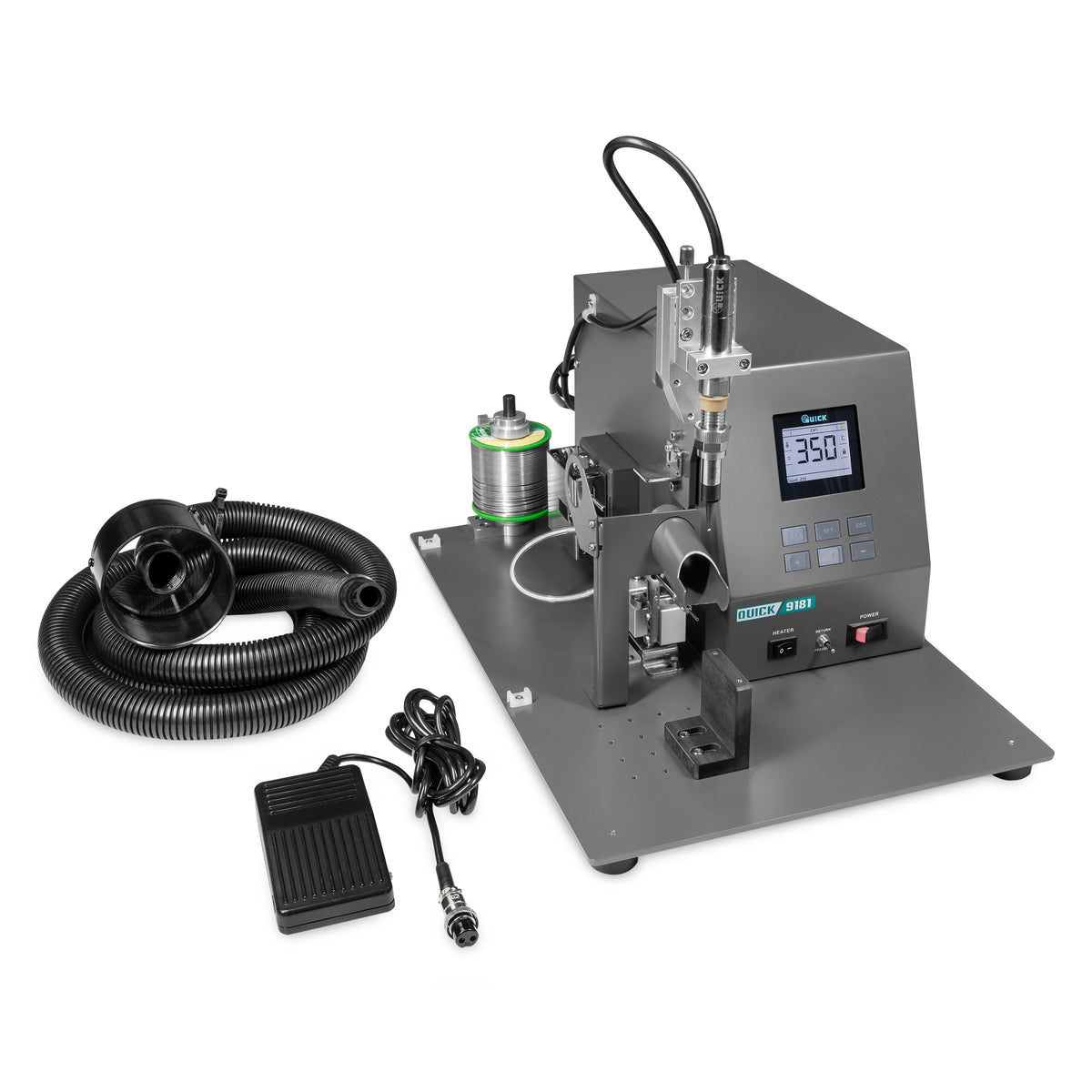

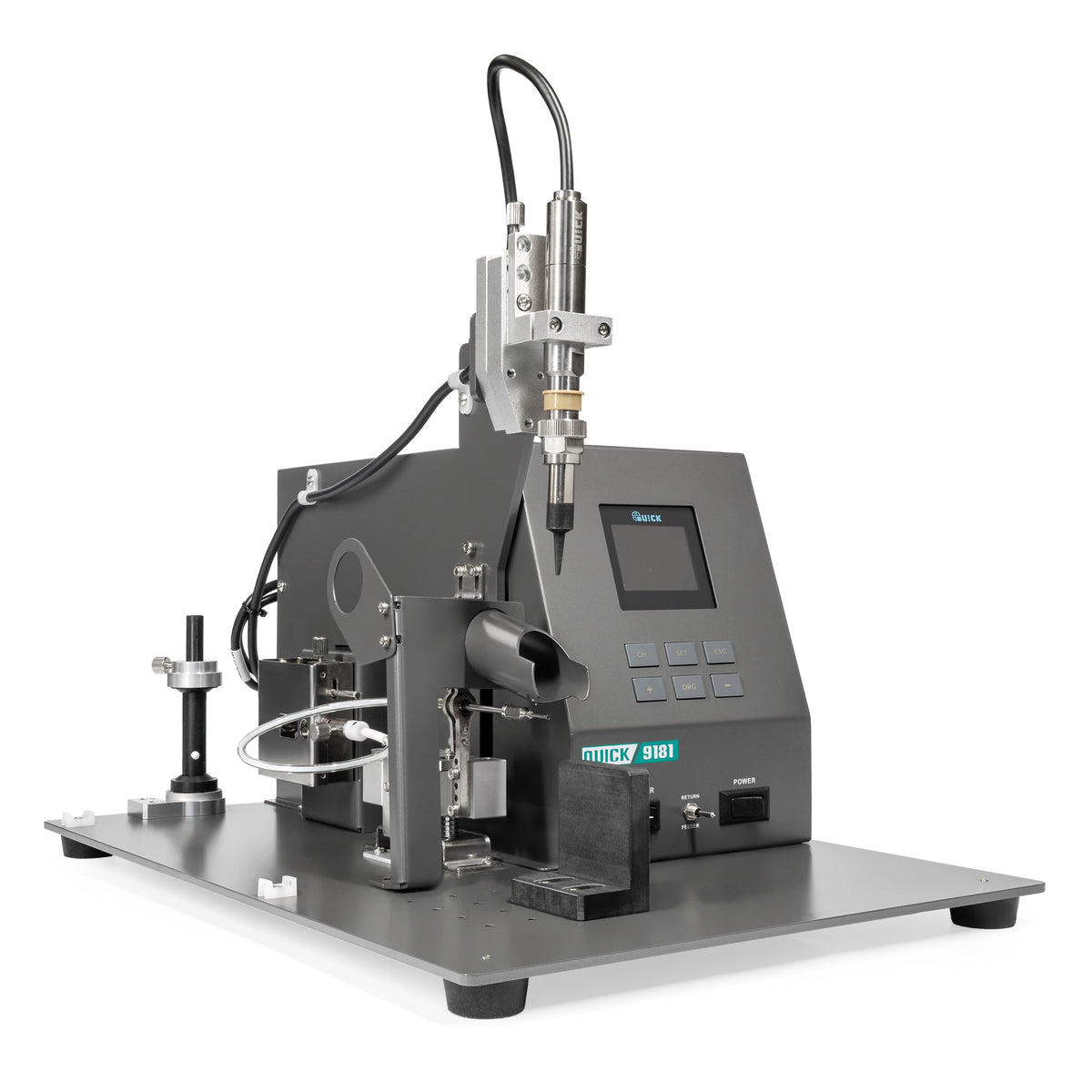

QUICK ET9181 Single axis soldering robot

QUICK ET9181 Single axis soldering robot

Rs. 185,000.00
Rs. 300,000.00 Rs. 185,000.00
Sale Sold out

Free shipping

GST will be added at checkout.

To avail GST credit please provide your GSTIN during checkout.

The QUICK ET9181 is a compact, single axis semi automatic soldering robot with an integrated automatic solder wire feeder. It is designed to replace manual soldering stations for high-consistency and repetitive tasks like cables, connectors, PCBs, USB plugs, and switches.

  • Specially designed for soldering cables, USB, connectors, aviation plugs, PCB, terminals and switches etc.
  • Better option for replacing manual soldering stations and improving soldering efficiency.
  • Concise appearance and sheet-metal structure.
  • LCD screen, soldering time and wire feeding amount are adjustable.
  • Stepper motor control, no need of compressed air.
  • Easy programming.
  • High frequency current heating, fast temperature recovery .
  • Programmable for speed/time, feeding/interval etc.
  • Suitable for use with a wide range of fixtures.
  • Power Consumption
 :  280W
  • Temperature Range
 :  200-550°C
  • Power Supply
 :  220V
  • Temperature Stability
 :  ±3°C (no load)
  • Solder Wire Diameter
 :  0.8, 1.0, 1.2,1.6mm
  • Dimension
 :  285X420X265mm
  • Motor Range
 :  80mm
  • Soldering Time
 :  0.01-9.99s
  • Weight Around

:  13Kg



Inclusions :

• 1-Axis Soldering Robot
• Soldering & Wire Feeding Controller
• Head & Wire Feeder Soldering
• Soldering ip T
• Foot Switch
• Instruction Manual

Shipping

Free shipping all across India.

Equipments are handled with extra care and will be delivered at the fastest time possible.

All our products will be despatched only after thorough Quality and Performance Checks.

Orders will be despatched within 1-2 working days.

Support

Soldering TECH has a team of Trained Engineers to assist all our customers with after sales and service support.

All necessary spares, accessories and consumables are in stock.

Additional Information

1 Year Warranty for all QUICK products
* Warranty against manufacturing defects only.

Life time service and spares support
